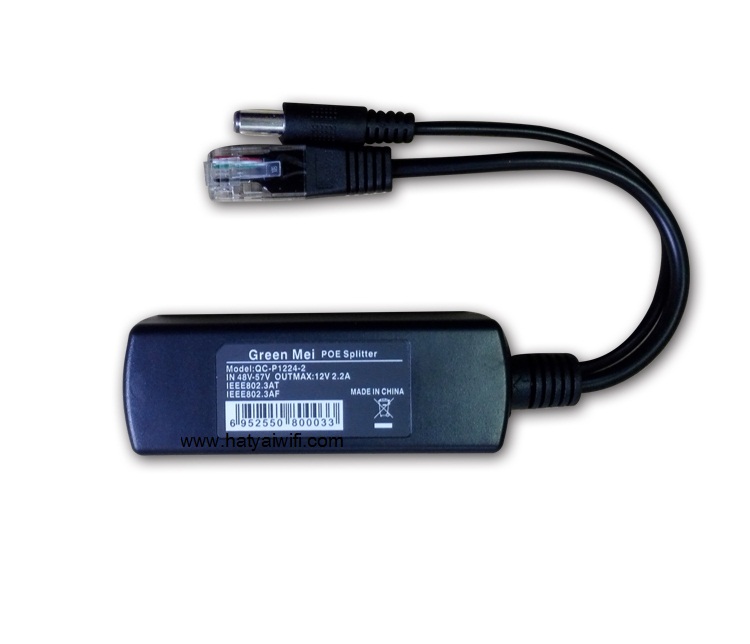

PoE 48-57V 802.3 AT/AF Standard DC 12V 2.2A 26W Power over Ethernet for CCTV Security Network IP Camera

1. Model: HT-POEAFAT

2. Standard Compliant: IEEE 802.3at/af

3. Data Transmission: 10/100Mbps

4. Maximum Power: 26W

5. Power Input: DC 48V-57V, 0.6A

6. Output Power: 12V 2.2A

7. Maximum transmission distance: 100 meters

8. Network standards: IEEE802.3i 10 BASE-T, IEEE802.3i 100 BASE-TX, IEEE802.3x flow control

9. Mode: Mode A & Mode B 1/2(+), 3/6 (–) or 4/5(+), 7/8(-)

10. Signal Indicator: Yellow LED Light (PoE & Data), Green LED Light (DC Power)

11. DC Power Plug: 5.5*2.1*8mm

12. DC Power Cable Length: 16cm

13. RJ-45 Cable Length: 16cm

14. Circuit isolation protection, effective protection of electrical equipment

15. High quality design guarantees the stability and reliability of the equipment in work

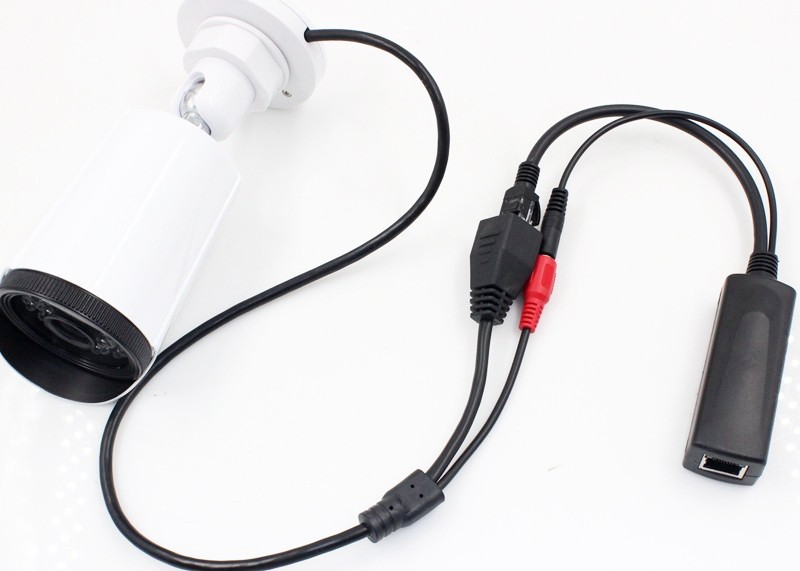

ตัวอย่างการใช้งาน
