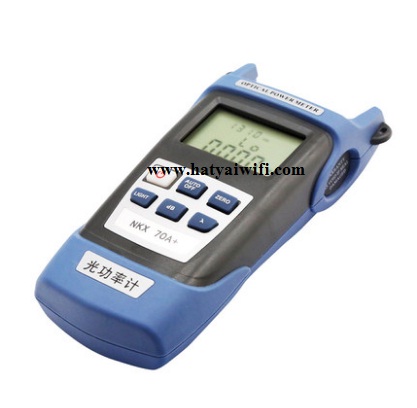

Optical Power Meter Applications
- Telecom Maintenance
- CCTV Maintenance
- Comprehensive cable construction system
- Optical instruments research and development
- Optical communication education and lab testing
- Other optical project
Optical Power Meter Features
- User self calibration function
- Comfortable LCD display and optional backlight LCD display supports night operation
- Power measurements in dBm or mw and insertion loss in dB
- Low battery consumption, more than 240 hours continual operation time for three 1.5V alkaline batteries
- Optional 10 minutes Auto-off function
Optical Power Meter Specifications
Model |
|
|
Wavelength(nm) |
800nm to 1550nm |
Detector |
InGaAs |
Measurement Range (dBm) |
-70~+3 |
|
Uncertainty |
+5% |
Calibrated Wavelength(nm) |
850,980,1300,1310,1490,1550 |
Resolution(dB) |
Linear 0.1% or Non-linear 0.01dBm |
Optical Connector |
SC/FC |
Power Supply |
Alkaline Battery(3 AA 1.5V batteries)(without Batteries) |
Battery Operating Time |
240 h with 1.5V Battery(3) |
Operating Temperature(oC) |
-10 ~ +60 |
Storage Temperature(oC) |
-25 ~ +70 |
Relative Humidity |
0 to 95% (non-condensing) |
Dimension(mm) |
172x82x33 |
|
|
|
|
|
